◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

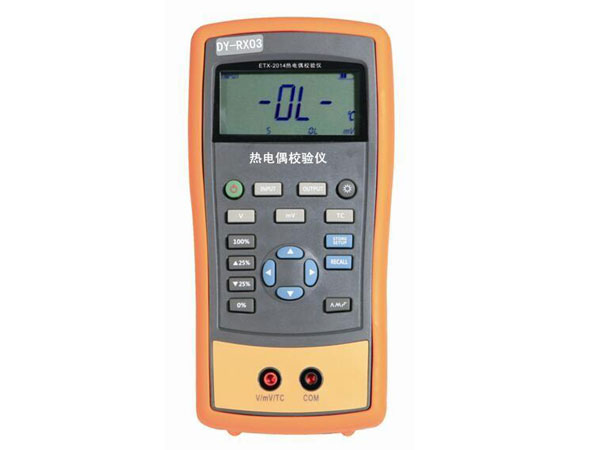

DY-RX03 thermocouple calibrator is a set of measurement and output thermocouple, voltage, millivolt signal in one of the hand-held test instrument. With LED backlight, for use in dim light places.

[Product Features]

1. Strong protection function: waterproof level IP67, any signal end misconnect 220V automatic protection;

2. Simulate thermocouple in the form of temperature;

3. Thermocouple measurement and output are provided with automatic and manual cold end temperature compensation;

4. New thermocouple types can be customized according to customer needs;

5. Accuracy: DY-RX03A is 0.02%, DY-RX03B is 0.05%;

6. Can provide manual step, automatic step, 0 ~ 100% step and slope output function;

7. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for field use;

8. Battery box cover, convenient battery replacement;

[Technical indicators]

General technical specifications:

1. Operating temperature: -10℃ ~ 55℃

2. Storage temperature: -20℃ ~ 60℃

3. Relative temperature: 0 ~ 90%RH, non-condensation

4. Weight: 350g

5. Dimensions: 47 mm×93 mm×185 mm

6. Power supply: 6 7# batteries or AC adapter

Standard accessories

1. Watch pen: 18A53 watch pen 1 pay

2. Power Adapter: One 18A52 charger

List of output and measurement functions

Measurement Index

Output Indicators
