[Technical indicators]

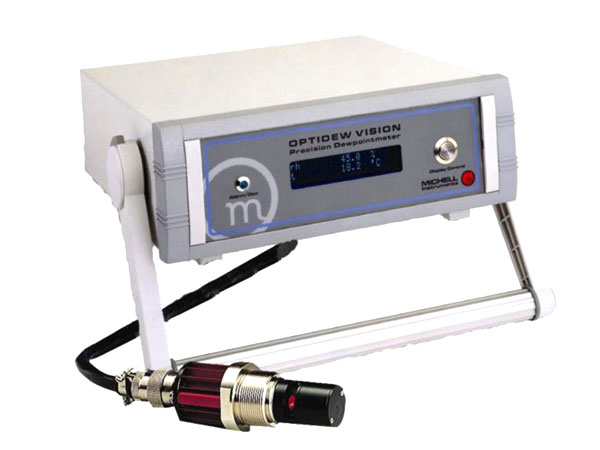

General technical index of British micell precision dew point meter

1, When the ambient temperature is -40-90℃, the measurement range is < (0.5-100) %RH;The high temperature transmitter option is -20-+130℃

2, Resolution: unit is ° C, ° F and % RH, 0.1, unit is GM-3 and g/kg-1 is 0.01

3, total accuracy: accuracy ±0.2℃ dew point;Plus or minus 0.1 ℃ temperature

4, Reaction speed: 1℃ Se-1

5, Power supply: 90-264V, 47/440Hz,IEC and built-in filter connection

Technical specifications of metcher precision dew point meter transmitter

1, working temperature: -40-+90℃, high temperature transmitter option for -20-+130℃

2, Mirror: gilded copper

3, temperature measurement: a third din B 4 wire 100 Ω platinum resistance x150mm 3 mm diameter stainless steel probe length

4, sampling flow: 0.1-2N1min-1(in the sampling stop block)

5. Upper limit speed: 10 MSEC-1 (directly inserted) 30 MSEC-1 (equipped with sintering protective sleeve)

6, pressure: 25MPa (Max)

7, dimensions: 126 length *48 diameter mm

8, Weight: 0.5kg

British michel precision dew point meter unit technical indicators

(1) Resolution: Unit is ℃, 0.1 when ℉ and %rh, GM-3 and GKG-1 are 0.01

(2) Output: Analog: For any parameter, the user can choose 4-20mA or 0-20mA output

(3) Digital: RS485 (optional) or RS232 user selectable baud rate analog and digital output updated every 5 seconds

(4) Alarm: 2A when no voltage contact is 30VDC

(5) Working environment: temperature -20-+50℃, humidity 98%, no condensation

(6) Box: rectangular box with handle 230L*198W*85H mm, optional weight of panel mounting components: 2.3kg

(7) Entrance protection: IP54 (equivalent to NEMA2)

(8) Cable connection: 2M transmitter cable, with 10-way bayonet connector, 2M temperature probe cable, with all-sky ring connector

(9) Power cable with IEC connector

(10) Analog/alarm contacts are connected to digital communication by connecting a terminal and connected by a 9-way D-connector (the mounting assembly is provided as a standard part)

(11) RS232 cable 9-way D plug/socket 2M cable
