DY-HTC Hand-held Blackbody Furnace(35℃-120℃)

DY-HTC Hand-held Blackbody Furnace

DY-HTC Hand-held Blackbody Furnace(35℃-120℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

A black body is defined as an object that absorbs all external radiant energy and simultaneously radiates all its own energy.

Overview: Main technical indicators of black body: black body emissivity, black body cavity diameter, temperature uniformity and radiation temperature uncertainty.

So in order to ensure the quality of black body products, usually black body is designed according to the temperature segment.

Usually what we call boldface is artificial boldface.

The emissivity of the artificial blackbody is close to, but not equal to, 1.

Black body in the industry is mainly used in the field of temperature measurement, the main product is black body furnace.

In the calibration and verification of radiation thermometers, the comparative method is usually adopted, that is, through the radiation source of high stability (usually black body radiation source) and other supporting equipment, the temperature reproduced by the standard apparatus and the temperature reproduced by the radiation thermometer are compared, in order to judge whether it is qualified or to give the calibration results.

As a standard radiation source, the standard black body is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

At present, our company has advanced black body technology, full product range and wide temperature range of black body series products.

The product is small in size, light in weight and easy to carry. It is not only suitable for the use of radiation thermometers in the laboratory calibration of measuring institutions at all levels, but also for on-site calibration.

[Product Features]

1. Human-machine interface, Chinese display, touch operation, beautiful and generous.

2. One-key temperature setting, easy to operate.Rapid heating, temperature control.

3. The product is small in size, light in weight and easy to carry.

[Technical Indicator]

ModelDY-HTC
Temperature Range35℃-120℃
Temperature Resolution0.1℃
Temperature ControlPID Automatic Control
Cavity DiameterΦ30mm(Customizable)
Emissivity≥0.995
Temperature Stability±0.1℃
Power Supply220V  AC  50HZ
Power200W
Dimension(L×W×H)210mm×175mm×65mm
Weight1.5Kg

Note: other special requirements can be customized according to the needs of users

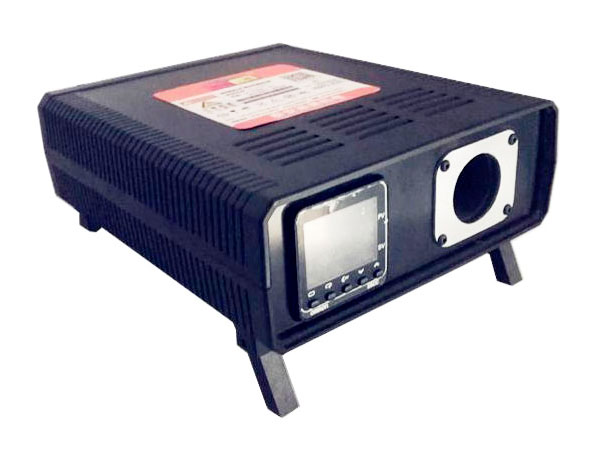

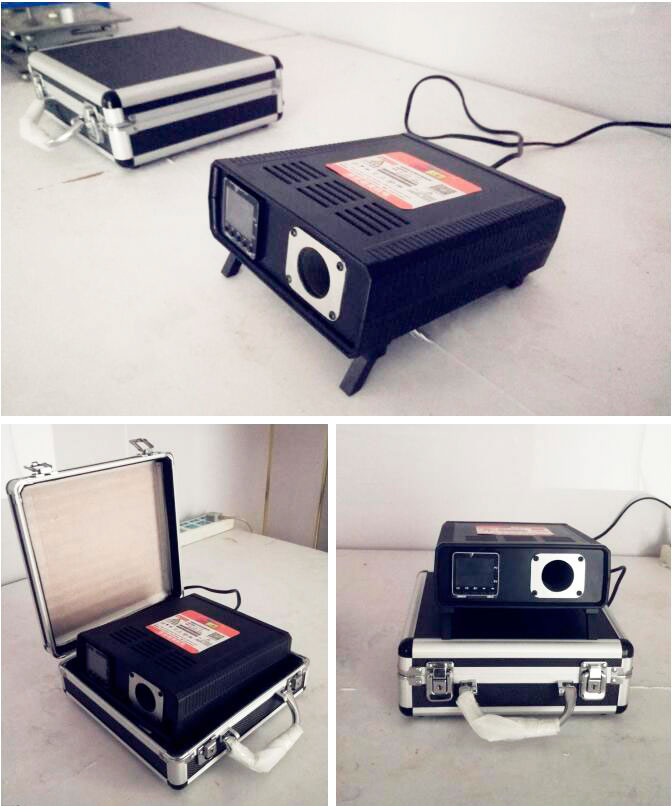

Physical map

DY-HTC Hand-held Blackbody Furnace
