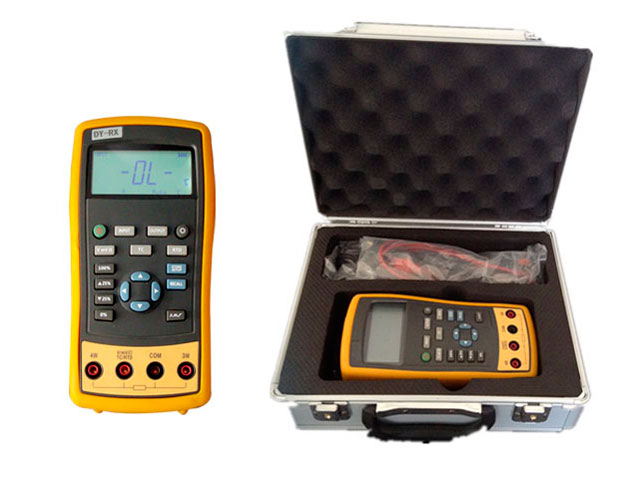

DY-RX01 Temperature Calibrator/Thermal Instrument Calibrator
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]
DY-RX01 temperature checking instrument is a handheld, battery powered checking instrument, and can be used to measuring temperature and output a variety of signals, such as voltage, resistance signals, thermocouple, heat resistance signal, high brightness backlight large screen display, operation is simple, strong, small and light, compact structure, and economic and practical, can be used in the calibration instrument workshop, measuring room, laboratory, is the ideal of process control instrument calibration instrument.
[Product Feature]
1· Strong protection function: waterproof grade IP67, any signal end mistakenly connected to 220V automatic protection;Both automatic and manual cold end temperature compensation are provided for thermocouple measurement;
2· According to customer needs to customize the new thermocouple type;Precision: 0.02%(dy-rx01a), 0.05%(dy-rx01b);
3· With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for field use;Unique automatic identification of three-wire, four-wire wiring;Battery cover for convenient battery replacement;
[Technical Indicators]
General technical specifications
Operating temperature: -10℃ ~ 55℃
Storage temperature: -20℃ ~ 60℃
Relative temperature: 0 ~ 90%RH, non-condensation
Weight: 350 grams
Overall dimension:47 mm * 93 mm * 185 mm
Power supply: 6 7# batteries or ac adapters
Standard accessories
Watch pen: 18A53 watch pen 1 pay
Power adapter: one 18A52 charger
Measurement index
| Function | Measuring Range | Accuracy | |
| DY-RX01A | DY-RX01B | ||
| Voltage | 0～30.000V | 0.02%+2 | 0.05%+2 |
| millivolt | -15.00mV～80.00 mV | 0.02%+2 | 0.05%+2 |
| 80.00mV～125.00 mV | |||
| Resistance (2wire,3wire) | 0.00Ω～440.00Ω | 0.15Ω | 0.25Ω |
| 400.0Ω～3200.0Ω | 1.0Ω | 1.5Ω | |
| Resistance(4wire) | 0.00Ω～440.00Ω | 0.1Ω | 0.15Ω |
| 400.0Ω～3200.0Ω | 0.5Ω | 1.0Ω | |
| Thermocouple | J、K、T、E、R、S、B、N | / | / |
| Thermal Resistance | Pt100、Pt1000、Cu50、Cu100 | / | / |
Output indicators
| Function | Measuring Range | Accuracy | |
| DY-RX01A | DY-RX01B | ||
| Millivolt | -15.00 mV～99.999mV | 0.02%+2 | 0.05%+2 |
| 100.00 mV～125.00mV | |||
| Resistance | 0.00Ω～440.00Ω | 0.15Ω | 0.25Ω |
| 400.0Ω～3200.0Ω | 0.5Ω | 1.0Ω | |
| Thermocouple | J、K、T、E、R、S、B、N | / | / |
| Thermal Resistance | Pt100、Pt1000、Cu50、Cu100 | / | / |
